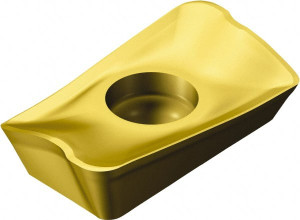

Sandvik Coromant R390-11T304E-PL 1025 Carbide Milling Insert TiCN/TiN Finish, 10mm Long x 3.59mm Thick x 6.8mm Wide 5745445 - 33934092
Brand: Sandvik Coromant- SKU:
- 33934092
- ID:
- 661817
$44.40
Sandvik Coromant R390-11T304E-PL 1025 Carbide Milling Insert TiCN/TiN Finish, 10mm Long x 3.59mm Thick x 6.8mm Wide
Manufacturer Part #: 5745445
S/N: 33934092
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | R390 |
| Insert Size | 11 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | 1025 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1413 |
| Thickness (mm) | 3.59 |
| Coating/Finish | TiCN, TiN |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Insert Size Code | 11T304 |
| Inscribed Circle (Decimal Inch) | 0.2677 |
| Inscribed Circle (mm) | 6.80 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Series | R390 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.11 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Ansi Code | R390-11 T3 04E-PL 1025 |
| Iso Code | R390-11 T3 04E-PL 1025 |
| Standards | ANSI, ISO |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R390-11 T3 04E-PL 1025 |
| Cutter Series Compatibility | M-32, R390 |
| Chip Breaker | PL |
| Material Application | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 10.00 |
| Width (Decimal Inch - 4 Decimals) | 0.2677 |
| Width (mm - 2 Decimals) | 6.80 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
