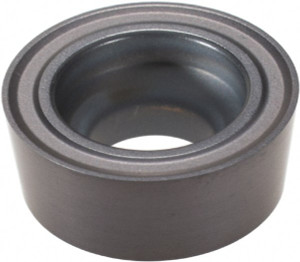

Kennametal RCGH43 KCU10 Carbide Turning Insert 1/2" Inscribed Circle, 3/16" Thick, Round 5090744 - 34960468
Brand: Kennametal- SKU:
- 34960468
- ID:
- 672114
$36.86
Kennametal RCGH43 KCU10 Carbide Turning Insert 1/2" Inscribed Circle, 3/16" Thick, Round
Manufacturer Part #: 5090744
S/N: 34960468
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | RCGH |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Included Angle | 360 |
| Manufacturer Grade | KCU10 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENDEX |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.1665 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/2 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 5090744 |
| Material Grade | C3, C4 |
| Coating Classification | PVD |
| Chip Breaker | Common |
| Cutting Edge Style | Honed |
| Industry Standard Number | RCGH43 |
| Width (Decimal Inch - 4 Decimals) | 0.5 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 43 |
