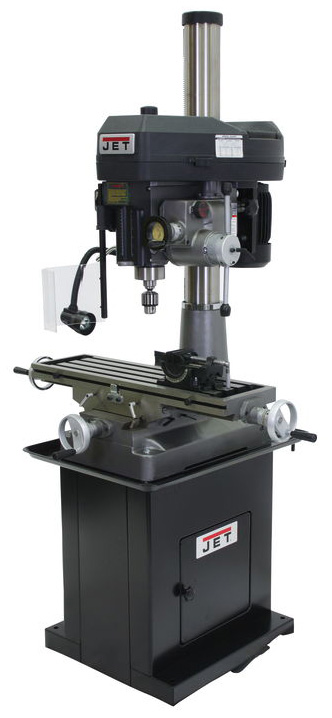

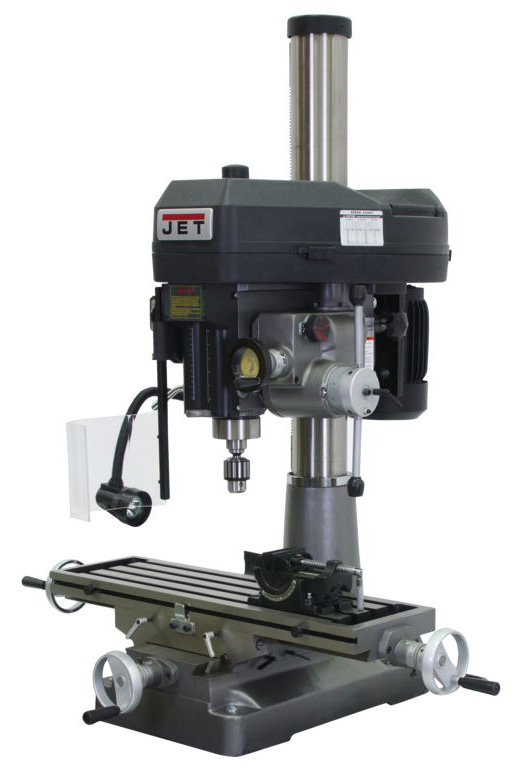

JET Belt Drive Mill/Drill JMD-18PFN with Power Downfeed, X-Axis Powerfeed and ACU-RITE VUE DRO - 350120

Brand:   Jet
SKU:
350120
ID:
327269
Model JMD-18PFN
Drilling Cap. 1-1/4"
Face Mill Cap. 3"
End Mill Cap. 3/4"
Powerfeed Downfeed & X-Axis
Digital Readout ACU-RITE VUE
$8,419.00
Fixed Shipping Cost:
$250.00
Current Stock:
Adding to cart… The item has been added

JET

JET Belt Drive Mill/Drill JMD-18PFN with Power Downfeed, X-Axis Powerfeed and ACU-RITE VUE DRO - 350120


Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.


Features:

  • One-piece cast iron column for added support
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Base taper allows for easier clean up
  • Drill Press angle vise
  • UL Listed motor
  • Extra large worktable
  • Positive quick-stop knob and easy to read internal depth gauge
  • 360° head swivel
  • Work lamp
  • Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
  • 1/2" drill chuck, chuck arbor
  • Draw bar
  • Drill Chuck Guard
  • Adjustable Carbide facemill


Specifications:

MODEL JMD-18PFN
ITEM NUMBER 350120
POWERFEED X-AXIS
DIGITAL READOUT ACU-RITE VUE
DRILLING CAPACITY 1-1/4"
FACE MILL CAPACITY 3"
END MILL CAPACITY 3/4"
SWING 15-7/8"
MAX DISTANCE SPINDLE TO TABLE 28"
SPINDLE TAPER (IN. X TPI) R-8
SPINDLE TRAVEL 5"
QUILL DOWN FEED RATES (IPR) 0.0047, 0.007, 0.001
QUILL DIAMETER 3"
COLUMN DIAMETER 4-1/2"
NUMBER OF SPINDLE SPEEDS 12
RANGE OF SPINDLE SPEEDS (RPM) 150 - 3,000
TABLE SIZE (L X W) 9-1/2" x 32-1/4"
TABLE LONGITUDINAL TRAVEL 20-1/2"
WORK TABLE WEIGHT CAPACITY 400 lbs.
T-SLOTS NUMBER AND SIZE 4 AND 5/8"
T-SLOT CENTERS 1-13/16"
BASE DIMENSIONS 15-3/4" x 23-3/4"
MOTOR (HP) 2 HP, 230V ONLY, 1 PH
OVERALL DIMENSIONS (L X W X H) 47" x 40" x 51"
WEIGHT 700 lbs.


Click to view the Owner's Manual



See all JET Belt Drive Mill/Drill Machines
