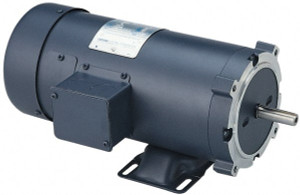

LEESON 1/3 Max Hp, 1,750 Max RPM, Electric AC DC Motor 115 V Input, 56C Frame 098004.00 - 35367267
Brand: LEESON- SKU:
- 35367267
- ID:
- 573277
$984.83
LEESON 1/3 Max Hp, 1,750 Max RPM, Electric AC DC Motor 115 V Input, 56C Frame
Manufacturer Part #: 098004.00
S/N: 35367267
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | DC |
| Enclosure Style | TEFC |
| Maximum HorsePower | 1/3 |
| Nameplate Rpm | 1750 |
| Voltage | 90 |
| Input Voltage | 115 |
| Frame Size | 56C |
| Mount Style | Rigid Base |
| Overall Length (Decimal Inch) | 11.3100 |
| Shaft Diameter (Inch) | 5/8 |
| Shaft Length | 11.3100 |
| Motor Rotation | Reversible |
| Service Factor Rating | 1.0 |
| Insulation Class | F |
| Full Load Amperage | 3.5 |
| Standards | CSA, NEMA MG1, UL |
| Maximum RPM | 1750.00 |
| Arm Volts DC | 90 |
| Dayton Part Number | 2M509 |
| Input Current | DC |
| Product Service Code | 6105 |
