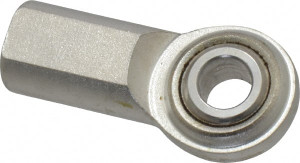

Made in USA 3/8" ID, 1" Max OD, 3,080 Lb Max Static Cap, Plain Female Spherical Rod End 3/8-24 RH, Stainless Steel with Stainless Steel Raceway SCF6T - 35398403
Brand: Made in USA- SKU:
- 35398403
- ID:
- 580103
$31.38
Made in USA 3/8" ID, 1" Max OD, 3,080 Lb Max Static Cap, Plain Female Spherical Rod End 3/8-24 RH, Stainless Steel with Stainless Steel Raceway
Manufacturer Part #: SCF6T
S/N: 35398403
UNSPSC: 31171508
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Rod End Type | Ball Joint Linkage |
| Style | Plain Female Rod End |
| Maximum Outside Diameter (Inch) | 1 |
| Maximum Static Load Capacity | 3080 |
| Width (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.6870 |
| Thread Size | 3/8-24 |
| Shank Diameter | 0.3937 |
| Shank Length (Decimal Inch) | 0.8120 |
| Housing Material | Stainless Steel |
| Gender | Female |
| Thread Direction | Right Hand |
| Bore Diameter (Inch) | 3/8 |
| Bore Diameter (Decimal Inch) | 0.3750 |
| Static Load Capacity | 3080 |
| Raceway Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Maximum Ball Swivel | 22 |
| Thread Length (Decimal Inch) | 0.8120 |
| Overall Thickness (Decimal Inch) | 0.5620 |
| Lubricant Type | PTFE |
| UNSPSC Code | 31171508 |
