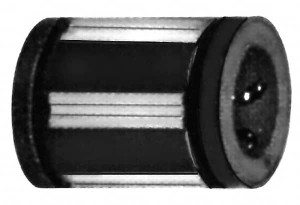

Thomson Industries 1" ID, 1,050 Lb Dynamic Load Capacity, Closed Linear Bearing 1-9/16" OD SUPER16 - 35528066
Brand: Thomson Industries- SKU:
- 35528066
- ID:
- 571380
$123.20
Thomson Industries 1" ID, 1,050 Lb Dynamic Load Capacity, Closed Linear Bearing 1-9/16" OD
Manufacturer Part #: SUPER16
S/N: 35528066
UNSPSC: 31171506
UPC: 662486102588
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Super Ball Bushing |
| Bearing Style | Closed |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.5625 |
| Outside Diameter (Inch) | 1-9/16 |
| Bore Diameter (mm) | 25.40 |
| Bore Diameter (Decimal Inch) | 1.0000 |
| Dynamic Load Capacity (Lb.) | 1050 |
| Material | Engineered-Polymer (Retainer) |
| Bore Type | Round |
| Alignment Style | Self |
| Open Number of Ball Circuits. | 5 |
| Closed Dynamic Load Capacity | 1050 |
| Overall Length (Decimal Inch) | 2.2300 |
| Open Dynamic Load Capacity (Lb.) | 780 |
| Minimum Slot Width | 0.5600 |
| Closed Number of Ball Circuits | 6 |
| Distance Between Retain Ring Grooves | 1.884 |
| 1.864 | |
| Retain Ring Groove Minimum | 0.0700 |
| Nominal Size (Decimal Inch) | 2.2500 |
