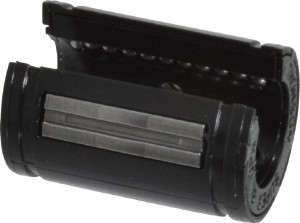

Thomson Industries 1/2" ID, 180 Lb Dynamic Load Capacity, Open Linear Bearing 7/8" OD SUPER8OPN - 35528108
Brand: Thomson Industries- SKU:
- 35528108
- ID:
- 571365
$86.37
Thomson Industries 1/2" ID, 180 Lb Dynamic Load Capacity, Open Linear Bearing 7/8" OD
Manufacturer Part #: SUPER8OPN
S/N: 35528108
UNSPSC: 31171506
UPC: 662486102823
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Super Ball Bushing |
| Bearing Style | Open |
| Inside Diameter (Decimal Inch) | 0.5000 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.8750 |
| Outside Diameter (Inch) | 7/8 |
| Bore Diameter (mm) | 12.70 |
| Bore Diameter (Decimal Inch) | 0.5000 |
| Dynamic Load Capacity (Lb.) | 180 |
| Material | Engineered-Polymer (Retainer) |
| Bore Type | Round |
| Alignment Style | Self |
| Open Number of Ball Circuits. | 3 |
| Overall Length (Decimal Inch) | 1.2300 |
| Open Dynamic Load Capacity (Lb.) | 180 |
| Minimum Slot Width | 0.3700 |
| Closed Number of Ball Circuits | 4 |
| Distance Between Retain Ring Grooves | 1.032 |
| 1.012 | |
| Retain Ring Groove Minimum | 0.0500 |
| Nominal Size (Decimal Inch) | 1.2500 |
