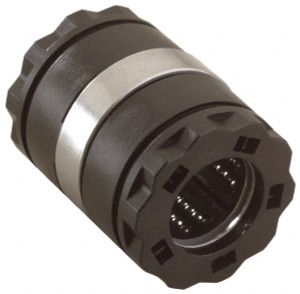

Thomson Industries 1-1/2" ID, 3,880 Lb Dynamic Load Capacity, Open Linear Bearing 2-3/8" OD SSU24OPN - 35528264
Brand: Thomson Industries- SKU:
- 35528264
- ID:
- 571430
$301.27
Thomson Industries 1-1/2" ID, 3,880 Lb Dynamic Load Capacity, Open Linear Bearing 2-3/8" OD
Manufacturer Part #: SSU24OPN
S/N: 35528264
UNSPSC: 31171506
UPC: 662486109938
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Ball Bushing |
| Bearing Style | Open |
| Inside Diameter (Decimal Inch) | 1.5000 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 2.3750 |
| Outside Diameter (Inch) | 2-3/8 |
| Bore Diameter (mm) | 38.10 |
| Bore Diameter (Decimal Inch) | 1.5000 |
| Dynamic Load Capacity (Lb.) | 3880 |
| Material | Steel |
| Bore Type | Round |
| Alignment Style | Self |
| Open Number of Ball Circuits. | 8 |
| Closed Dynamic Load Capacity | 3880 |
| Overall Length (Decimal Inch) | 2.9700 |
| Minimum Slot Width | 0.7500 |
| Closed Number of Ball Circuits | 10 |
| Distance Between Retain Ring Grooves | 2.442 |
| 2.402 | |
| Retain Ring Groove Minimum | 0.0680 |
| Nominal Size (Decimal Inch) | 3.0000 |
