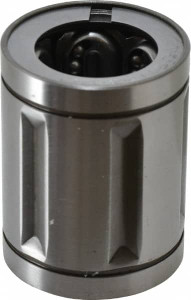

Thomson Industries 1-1/4" ID, 520 Lb Dynamic Load Capacity, Closed Linear Bearing 2" OD A203242 - 35528330
Brand: Thomson Industries- SKU:
- 35528330
- ID:
- 571408
$242.37
Thomson Industries 1-1/4" ID, 520 Lb Dynamic Load Capacity, Closed Linear Bearing 2" OD
Manufacturer Part #: A203242
S/N: 35528330
UNSPSC: 31171506
UPC: 662486100331
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Ball Bushing |
| Bearing Style | Closed |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 2.0000 |
| Outside Diameter (Inch) | 2 |
| Bore Diameter (mm) | 31.75 |
| Bore Diameter (Decimal Inch) | 1.2500 |
| Dynamic Load Capacity (Lb.) | 520 |
| Material | Steel |
| Bore Type | Round |
| Alignment Style | Fixed |
| Open Number of Ball Circuits. | 5 |
| Closed Dynamic Load Capacity | 520 |
| Overall Length (Decimal Inch) | 2.6050 |
| Open Dynamic Load Capacity (Lb.) | 400 |
| Minimum Slot Width | 0.6300 |
| Closed Number of Ball Circuits | 6 |
| Distance Between Retain Ring Grooves | 2.009 |
| 1.991 | |
| Retain Ring Groove Minimum | 0.0680 |
| Nominal Size (Decimal Inch) | 2.6250 |
