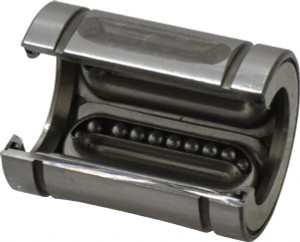

Thomson Industries 3/4" Inside Diam, 200 Lbs. Dynamic Capacity, Open Linear Bearing OPN122026 - 35528413
Brand: Thomson Industries- SKU:
- 35528413
- ID:
- 571382
$107.15
Thomson Industries 3/4" Inside Diam, 200 Lbs. Dynamic Capacity, Open Linear Bearing
Manufacturer Part #: OPN122026
S/N: 35528413
UNSPSC: 31171506
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Ball Bushing |
| Bearing Style | Open |
| Inside Diameter (Decimal Inch) | 0.7500 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.2500 |
| Outside Diameter (Inch) | 1-1/4 |
| Outside Diameter (mm) | 31.75 |
| Bore Diameter (mm) | 19.05 |
| Bore Diameter (Decimal Inch) | 0.7500 |
| Dynamic Load Capacity (Lb.) | 200 |
| Material | Steel |
| Bore Type | Round |
| Alignment Style | Fixed |
| Open Number of Ball Circuits. | 4 |
| Closed Dynamic Load Capacity | 200 |
| Overall Length (Decimal Inch) | 1.6100 |
| Open Dynamic Load Capacity (Lb.) | 140 |
| Minimum Slot Width | 0.4400 |
| Closed Number of Ball Circuits | 5 |
| Distance Between Retain Ring Grooves | 1.170 |
| 1.154 | |
| Retain Ring Groove Minimum | 0.0560 |
| Nominal Size (Decimal Inch) | 1.6250 |
