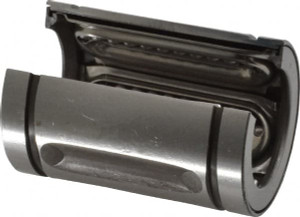

Thomson Industries 1" Inside Diam, 350 Lbs. Dynamic Capacity, Open Linear Bearing OPN162536 - 35528421
Brand: Thomson Industries- SKU:
- 35528421
- ID:
- 571391
$174.35
Thomson Industries 1" Inside Diam, 350 Lbs. Dynamic Capacity, Open Linear Bearing
Manufacturer Part #: OPN162536
S/N: 35528421
UNSPSC: 31171506
UPC: 662486100898
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Ball Bushing |
| Bearing Style | Open |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.5625 |
| Outside Diameter (Inch) | 1-9/16 |
| Outside Diameter (mm) | 39.68 |
| Bore Diameter (mm) | 25.40 |
| Bore Diameter (Decimal Inch) | 1.0000 |
| Dynamic Load Capacity (Lb.) | 350 |
| Material | Steel |
| Bore Type | Round |
| Alignment Style | Fixed |
| Open Number of Ball Circuits. | 4 |
| Closed Dynamic Load Capacity | 350 |
| Overall Length (Decimal Inch) | 2.2350 |
| Open Dynamic Load Capacity (Lb.) | 240 |
| Minimum Slot Width | 0.5600 |
| Closed Number of Ball Circuits | 5 |
| Distance Between Retain Ring Grooves | 1.759 |
| 1.741 | |
| Retain Ring Groove Minimum | 0.0680 |
| Nominal Size (Decimal Inch) | 2.2500 |
