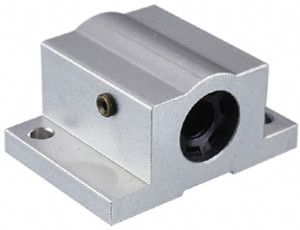

Thomson Industries 1/4" Inside Diam, 60/120 Lbs. Dynamic Capacity, Closed Single Pillow Block Linear Bearing 0.81" Overall Height x 1.63" Overall Width SPB4 - 35528595
Brand: Thomson Industries- SKU:
- 35528595
- ID:
- 571387
$112.02
Thomson Industries 1/4" Inside Diam, 60/120 Lbs. Dynamic Capacity, Closed Single Pillow Block Linear Bearing 0.81" Overall Height x 1.63" Overall Width
Manufacturer Part #: SPB4
S/N: 35528595
UNSPSC: 31171506
UPC: 662486102199
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Ball Bushing Pillow Block |
| Bearing Style | Closed |
| Inside Diameter (Decimal Inch) | 0.2500 |
| Bore Diameter (mm) | 6.35 |
| Bore Diameter (Decimal Inch) | 0.2500 |
| Dynamic Load Capacity (Lb.) | 60 |
| 120 | |
| Material | Engineered-Polymer (Retainer) |
| Overall Width (Decimal Inch - 4 Decimals) | 1.6300 |
| Overall Height (Decimal Inch) | 0.8100 |
| Bore Type | Round |
| Alignment Style | Self |
| Center-to-Center Bore Length (In) | 1.1900 |
| Single Dynamic Load Capacity (Lb.) | 60 |
| Twin Dynamic Load Capacity (Lb.) | 120 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Block Length | 1.1900 |
| Nominal Size (Decimal Inch) | 1.1900 |
| Body Length (Decimal Inch) | 1.0000 |
