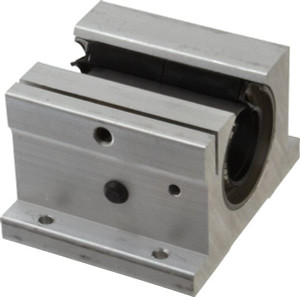

Thomson Industries 1-1/4" Inside Diam, 2350/4700 Lbs. Dynamic Capacity, Open Single Pillow Block Linear Bearing 2.56" Overall Height x 4" Overall Width SSUPBO20 - 35529031
Brand: Thomson Industries- SKU:
- 35529031
- ID:
- 571469
$553.58
Thomson Industries 1-1/4" Inside Diam, 2350/4700 Lbs. Dynamic Capacity, Open Single Pillow Block Linear Bearing 2.56" Overall Height x 4" Overall Width
Manufacturer Part #: SSUPBO20
S/N: 35529031
UNSPSC: 31171506
UPC: 662486110057
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Ball Bushing Pillow Block |
| Bearing Style | Open |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Bore Diameter (mm) | 31.75 |
| Bore Diameter (Decimal Inch) | 1.2500 |
| Dynamic Load Capacity (Lb.) | 2350 |
| 4700 | |
| Material | Steel |
| Overall Width (Decimal Inch - 4 Decimals) | 4.0000 |
| Overall Height (Decimal Inch) | 2.5600 |
| Bore Type | Round |
| Alignment Style | Self |
| Center-to-Center Bore Length (mm) | 85.85 |
| Center-to-Center Bore Length (In) | 3.3800 |
| Single Dynamic Load Capacity (Lb.) | 2350 |
| Twin Dynamic Load Capacity (Lb.) | 4700 |
| Overall Length (Decimal Inch) | 7.5000 |
| Overall Block Length | 3.3800 |
| Nominal Size (Decimal Inch) | 3.3800 |
| Body Length (Decimal Inch) | 3.0000 |
