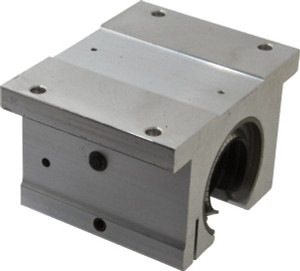

Thomson Industries 1-1/2" Inside Diam, 3880/7760 Lbs. Dynamic Capacity, Open Single Pillow Block Linear Bearing 2.94" Overall Height x 4-3/4" Overall Width SSUPBO24 - 35529049
Brand: Thomson Industries- SKU:
- 35529049
- ID:
- 571480
$702.22
Thomson Industries 1-1/2" Inside Diam, 3880/7760 Lbs. Dynamic Capacity, Open Single Pillow Block Linear Bearing 2.94" Overall Height x 4-3/4" Overall Width
Manufacturer Part #: SSUPBO24
S/N: 35529049
UNSPSC: 31171506
UPC: 662486110064
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Ball Bushing Pillow Block |
| Bearing Style | Open |
| Inside Diameter (Decimal Inch) | 1.5000 |
| Bore Diameter (mm) | 38.10 |
| Bore Diameter (Decimal Inch) | 1.5000 |
| Dynamic Load Capacity (Lb.) | 3880 |
| 7760 | |
| Material | Steel |
| Overall Width (Decimal Inch - 4 Decimals) | 4.7500 |
| Overall Height (Decimal Inch) | 2.9400 |
| Bore Type | Round |
| Alignment Style | Self |
| Center-to-Center Bore Length (mm) | 95.25 |
| Center-to-Center Bore Length (In) | 3.7500 |
| Single Dynamic Load Capacity (Lb.) | 3880 |
| Twin Dynamic Load Capacity (Lb.) | 7760 |
| Overall Length (Decimal Inch) | 9.0000 |
| Overall Block Length | 3.7500 |
| Nominal Size (Decimal Inch) | 3.7500 |
| Body Length (Decimal Inch) | 3.5000 |
