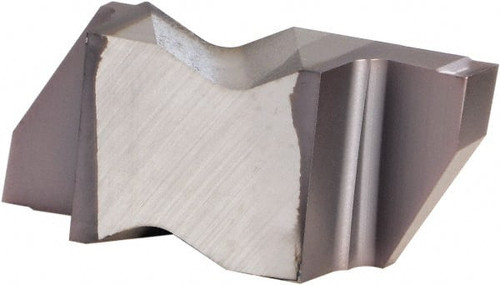

Kennametal NG3094RK KCU25 Carbide Grooving Insert AlTiN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch 4109803 - 35580570
Brand: Kennametal- SKU:
- 35580570
- ID:
- 650146
$42.99
Kennametal NG3094RK KCU25 Carbide Grooving Insert AlTiN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch
Manufacturer Part #: 4109803
S/N: 35580570
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NG |
| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (mm) | 2.39 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (mm) | 3.81 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU25 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Insert Holding Method | Clamp |
| Insert Size | 3094 |
| Material Grade | C2, C6 |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Chip Breaker | K |
| Insert Seat Size | 3 |
| MSC/Manufacturer Number | NG3094R/LK |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1960 |
| Included Angle Degree | 55 |
| Coating/Finish | AlTiN |
| Single Or Double End | Double |
