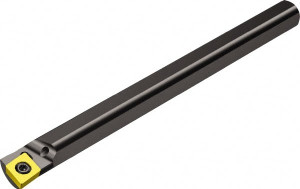

Sandvik Coromant 15.2mm Min Bore, Right Hand A-SCLC Indexable Boring Bar 6" OAL, 1/2" Shank Diam, 0° Lead Angle, Uses CCMT 21.51, A-SCLC Inserts, Through Coolant 5721312 - 35622711
Brand: Sandvik Coromant- SKU:
- 35622711
- ID:
- 684534
$323.20
Sandvik Coromant 15.2mm Min Bore, Right Hand A-SCLC Indexable Boring Bar 6" OAL, 1/2" Shank Diam, 0° Lead Angle, Uses CCMT 21.51, A-SCLC Inserts, Through Coolant
Manufacturer Part #: 5721312
S/N: 35622711
UNSPSC: 23241601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Bore Diameter (mm) | 15.20 |
| Minimum Bore Diameter (Decimal Inch) | 0.5984 |
| Toolholder Style | A-SCLC |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.5984 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.5984 |
| Tool Material | Steel |
| Insert Compatibility | CCMT 21.51 |
| Shank Diameter (mm) | 12.70 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 0.00 |
| Series | CoroTurn 107 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Center to Cutting Edge (Decimal Inch) | 0.3120 |
| Center to Cutting Edge (mm) | 7.92 |
| Multi-Use Application | Boring, Turning |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.5000 |
| UNSPSC Code | 23241601 |
| Neck Diameter (Inch) | 1/2 |
| Insert Thickness (Decimal Inch) | 0.0750 |
| Manufacturers Catalog Number | A08M-SCLCR 2 |
| Coolant Through | Yes |
