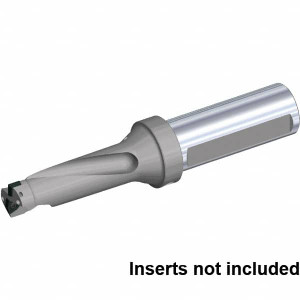

Kennametal 2.952" Max Drill Depth, 3xD, 63/64" Diam, Indexable Insert Drill Drill Style DFS, Takes 2 Inserts, 1" Shank Diam, Flange Shank 5689681 - 36065514

Kennametal 2.952" Max Drill Depth, 3xD, 63/64" Diam, Indexable Insert Drill Drill Style DFS, Takes 2 Inserts, 1" Shank Diam, Flange Shank 5689681 - 36065514

Brand:   Kennametal
SKU:
36065514
ID:
644630
callling
$826.73
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal 2.952" Max Drill Depth, 3xD, 63/64" Diam, Indexable Insert Drill Drill Style DFS, Takes 2 Inserts, 1" Shank Diam, Flange Shank

Manufacturer Part #: 5689681

S/N: 36065514

UNSPSC: 23291503

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Compatible Drill StyleDFS
Drill Diameter (Decimal Inch)0.9844
Drill Diameter (mm)24.99
Maximum Drill Depth (Decimal Inch)2.9520
Shank TypeFlange
Shank Diameter (Inch)1
Shank Diameter (Decimal Inch)1.0000
Number of Drill Inserts2
Cutting DirectionRight Hand
Maximum Drill Depth Range (Decimal Inch)2.0000 to 3.0000
Tool MaterialSteel
Drill Depth by Diameter Ratio3xD
Flute Length (Decimal Inch)3.1500
Flute Length (mm)80.00
Body Length102.25
Body Length (Decimal Inch)4.0256
Shank Length (Decimal Inch)3.0000
Shank Length (mm)76.20
Insert CompatibilityDFT05T3..
Coolant ThroughYes
