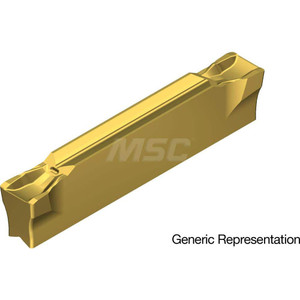

Sumitomo GCMN4002-GG-AC425K Carbide Grooving Insert Neutral, 0.1575" Cutting Width, 1" Max Depth, Series GND 186PALM - 36076214
Brand: Sumitomo- SKU:
- 36076214
- ID:
- 651729
$29.55
Sumitomo GCMN4002-GG-AC425K Carbide Grooving Insert Neutral, 0.1575" Cutting Width, 1" Max Depth, Series GND
Manufacturer Part #: 186PALM
S/N: 36076214
UNSPSC: 23242105
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | GCMN |
| Insert Size Code | 4002 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 25.40 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC425K |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Rake | Positive |
| Insert Size | 4002 |
| Maximum Depth of Cut (Inch) | 1 |
| Cutting Height (mm) | 3.99 |
| Maximum Depth Of Cut Range (Decimal Inch) | 1.0000+ |
| Cutting Height (Decimal Inch) | 0.1570 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Series | GND |
| Coating Process | CVD |
| Rake Angle | 5.00 |
| Overall Length (Decimal Inch) | 1.0390 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | GCMN4002-GG |
| Iso Code | ISO 13399 |
| Standards | ANSI, ISO 13399 |
| Maximum Corner Radius (Decimal Inch) | 0.0079 |
| Minimum Corner Radius (Decimal Inch) | 0.0079 |
| Inscribed Circle (Decimal Inch) | 1.0390 |
| Chip Breaker | GG |
| Insert Seat Size | 4 |
| Inscribed Circle (mm) | 26.39 |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1575 |
| Coating/Finish | Coated |
| Single Or Double End | Double |
