Sandvik Coromant N123G2-0400-RM 1125 Carbide Grooving Insert TiAlN Finish, Neutral, 4mm Cutting Width, 18.1mm Max Depth, Series CoroCut 1-2 5735755 - 36115665

Sandvik Coromant N123G2-0400-RM 1125 Carbide Grooving Insert TiAlN Finish, Neutral, 4mm Cutting Width, 18.1mm Max Depth, Series CoroCut 1-2 5735755 - 36115665

Brand:   Sandvik Coromant
SKU:
36115665
ID:
651055
callling
$60.67
Current Stock:
Adding to cart… The item has been added

Sandvik Coromant

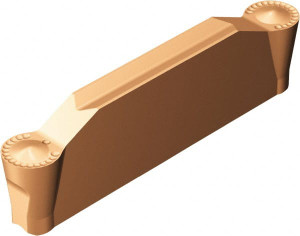

Sandvik Coromant N123G2-0400-RM 1125 Carbide Grooving Insert TiAlN Finish, Neutral, 4mm Cutting Width, 18.1mm Max Depth, Series CoroCut 1-2

Manufacturer Part #: 5735755

S/N: 36115665

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleN123x2
Cutting Width (Decimal Inch)0.1575
Cutting Width (mm)4.00
Insert HandNeutral
Maximum Depth of Cut (Decimal Inch)0.7130
Maximum Depth of Cut (mm)18.10
Insert MaterialSolid Carbide
Corner Radius (Decimal Inch)0.0787
Corner Radius (mm)2.00
RakePositive
Insert SizeG2
Cutting Height (mm)4.30
Maximum Depth Of Cut Range (Decimal Inch)0.3000 to 1.0000
Cutting Height (Decimal Inch)0.1693
Maximum Depth Of Cut Range (mm)10.00 to 20.00
Multi-use ToolYes
SeriesCoroCut 1-2
Coating ProcessPVD
Iso CodeN123G2-0400-RM 1125
Minimum Corner Radius (Decimal Inch)0.0787
Manufacturers Catalog NumberN123G2-0400-RM 1125
Insert Thickness (Decimal Inch)0.1693
UNSPSC Code23242105
Chip BreakerRM
Insert Seat SizeG
Overall Width (Decimal Inch - 4 Decimals)0.1580
Coating/FinishTiAlN
