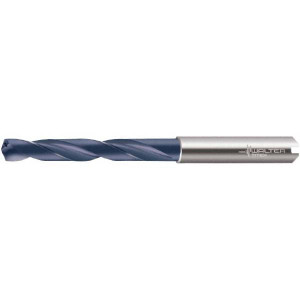

Walter Titex 0.339" 140° Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 4.0551" OAL, Special Type Point 6618368 - 36149706
Brand: Walter Titex- SKU:
- 36149706
- ID:
- 729950
$161.02
Walter Titex 0.339" 140° Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 4.0551" OAL, Special Type Point
Manufacturer Part #: 6618368
S/N: 36149706
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Decimal Inch) | 0.3390 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Proprietary |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Steel, Superalloys & Titanium |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | TiAlN |
| Primary Workpiece Material Code | K, N, P, S |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Overall Length (mm) | 103.00 |
| Overall Length (Decimal Inch) | 4.0551 |
| Spiral Type | Regular |
| Flute Length (mm) | 43.05 |
| Flute Length (Decimal Inch) | 1.6950 |
| Series | DC150 |
| Tool Application | Blind Hole, Stack Drilling |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.01 |
| Maximum Drilling Depth (Decimal Inch) | 1.6950 |
| Maximum Drilling Depth (mm) | 43.05 |
| Shank Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.5750 |
| Drill Point Length (mm) | 1.57 |
| Drill Point Length (Decimal Inch) | 0.0616 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Whistle Notch |
| Standards | ANSI, ISO |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Specification Designation | ISO |
| UNSPSC Code | 23241634 |
