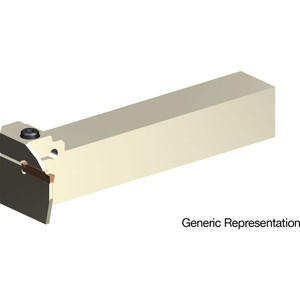

Sumitomo 17.78mm Max Depth, 2mm Min Width, External Right Hand Indexable Grooving Toolholder 6" OAL, 1" x 1" Shank, Uses GCMN, GCML, GCMR Inserts, GNDLS Toolholder, Series GND U104435 - 36167641
Brand: Sumitomo- SKU:
- 36167641
- ID:
- 685667
$319.21
Sumitomo 17.78mm Max Depth, 2mm Min Width, External Right Hand Indexable Grooving Toolholder 6" OAL, 1" x 1" Shank, Uses GCMN, GCML, GCMR Inserts, GNDLS Toolholder, Series GND
Manufacturer Part #: U104435
S/N: 36167641
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7000 |
| Maximum Depth of Cut (mm) | 17.78 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | GNDLS |
| Insert Holding Method | Screw |
| Insert Compatibility | GCML, GCMN, GCMR |
| Compatible Insert Size Code | GCML, GCMN, GCMR |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | GND |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Toolholder Material | Steel |
| Coolant Through | No |
