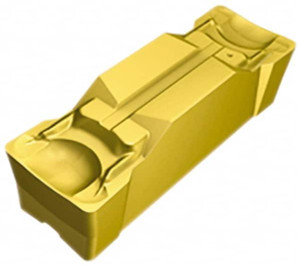

Sandvik Coromant N123G203180003-GM 2135 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 1/8" Cutting Width, 18mm Max Depth, Series CoroCut 1-2 5735901 - 36200509
Brand: Sandvik Coromant- SKU:
- 36200509
- ID:
- 650974
$47.50
Sandvik Coromant N123G203180003-GM 2135 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 1/8" Cutting Width, 18mm Max Depth, Series CoroCut 1-2
Manufacturer Part #: 5735901
S/N: 36200509
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Cutting Width (mm) | 3.17 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 18.00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 2135 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Corner Radius (mm) | 0.30 |
| Rake | Neutral |
| Insert Size | G |
| Cutting Width (Inch) | 1/8 |
| Cutting Height (mm) | 4.30 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Coating Process | MT-CVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.7776 |
| Iso Code | N123G2-0318-0003-GM 2135 |
| Maximum Corner Radius (Decimal Inch) | 0.0157 |
| Minimum Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturers Catalog Number | N123G2-0318-0003-GM 2135 |
| Overall Width (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1693 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GM |
| Insert Seat Size | G |
| Overall Width (mm) | 3.17 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1250 |
| Coating/Finish | TiCN/Al2O3/TiN |
