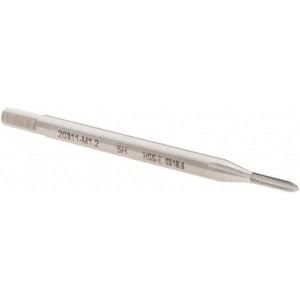

Walter Prototyp M1.2x0.25 Modified Bottoming RH 6H Bright Cobalt 3-Flute Straight Flute Machine Tap 40mm OAL, 5mm Thread Length, Metric, Series 20311 5076107 - 36332872
Brand: Walter Prototyp- SKU:
- 36332872
- ID:
- 780870
$89.48
Walter Prototyp M1.2x0.25 Modified Bottoming RH 6H Bright Cobalt 3-Flute Straight Flute Machine Tap 40mm OAL, 5mm Thread Length, Metric, Series 20311
Manufacturer Part #: 5076107
S/N: 36332872
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tap Type | Machine |
| Overall Length (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 40.00 |
| Thread Size (mm) | M1.2 x 0.25 |
| Thread Standard | Metric |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Oversize | No |
| Thread Pitch (mm) | 0.25 |
| Thread Length (Decimal Inch) | 0.1969 |
| Thread Length (mm) | 5.00 |
| Material Grade | M35 |
| Application | Blind Hole Threading, Through-Hole Threading |
| Shank Diameter (mm) | 2.50 |
| Shank Diameter (Decimal Inch) | 0.0984 |
| Tapping Depth (mm) | 5.00 |
| Tapping Depth (Decimal Inch) | 0.1970 |
| Square Length (mm) | 5.00 |
| Square Length (Decimal Inch) | 0.1970 |
| Square Size (mm) | 2.10 |
| Square Size (Decimal Inch) | 0.0827 |
| Material Application | Aluminum, Fiber Reinforced Plastics, Graphite, Gray Cast Iron, Malleable Cast Iron, Non-Ferrous Metals, Plastics, Spheroidal Cast Iron, Vermicular Cast Iron |
| Series | 20311 |
