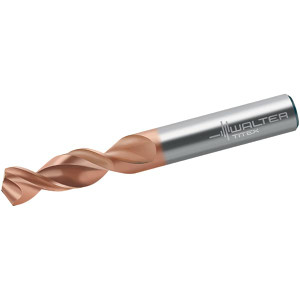

Walter Titex #31 130° Parabolic Flute Cobalt Screw Machine Drill Bit AlCrN Finish, Right Hand Cut, 18mm Flute Length, 49mm OAL, Conical+U Point, Straight Shank 5337174 - 36336717
Brand: Walter Titex- SKU:
- 36336717
- ID:
- 741415
$24.55
Walter Titex #31 130° Parabolic Flute Cobalt Screw Machine Drill Bit AlCrN Finish, Right Hand Cut, 18mm Flute Length, 49mm OAL, Conical+U Point, Straight Shank
Manufacturer Part #: 5337174
S/N: 36336717
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #31 |
| Drill Bit Size (Decimal Inch) | 0.1200 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Flute Type | Parabolic |
| Drill Point Angle | 130 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Conical+U |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel |
| Overall Length (mm) | 49.00 |
| Overall Length (Decimal Inch) | 1.9291 |
| Shank Diameter (mm) | 3.05 |
| Series | A1149XPL |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.4724 |
| Maximum Drilling Depth (mm) | 12.00 |
| Shank Length (Decimal Inch) | 1.2205 |
| Shank Length (mm) | 31.00 |
| Drill Point Length (mm) | 0.71 |
| Drill Point Length (Decimal Inch) | 0.0280 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | h8 |
| Standards | DIN, ISO |
| Flute Length (Decimal Inch) | 0.7087 |
| Flute Length (mm) | 18.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M35 |
