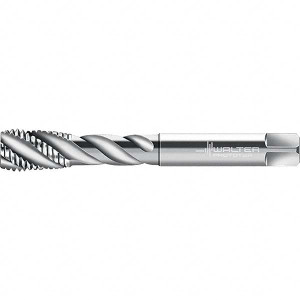

Walter Prototyp Spiral Flute Tap: M10x1.25, Metric Fine, 3 Flute, Modified Bottoming, 6H Class of Fit, Cobalt, Bright/Uncoated Finish 15.00 mm Thread Length, 100.00 mm OAL, Right Hand Flute, Right Hand Thread, Series P21569 6244616 - 36359248
Brand: Walter Prototyp- SKU:
- 36359248
- ID:
- 772391
$107.92
Walter Prototyp Spiral Flute Tap: M10x1.25, Metric Fine, 3 Flute, Modified Bottoming, 6H Class of Fit, Cobalt, Bright/Uncoated Finish 15.00 mm Thread Length, 100.00 mm OAL, Right Hand Flute, Right Hand Thread, Series P21569
Manufacturer Part #: 6244616
S/N: 36359248
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M10x1.25 |
| Thread Standard | Metric Fine |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Class Of Fit | 6H |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Aluminum, Cast Steel, Fiber-Reinforced Plastic, Graphite, Non-Ferrous Metal, Plastic, Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.5906 |
| Thread Length (mm) | 15.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Thread Pitch (mm) | 1.25 |
| Material Grade | M35 |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.2756 |
| Shank Diameter (mm) | 7.00 |
| Tapping Depth (Decimal Inch) | 3.0310 |
| Tapping Depth (mm) | 77.00 |
| Square Length (mm) | 8.00 |
| Square Length (Decimal Inch) | 0.3150 |
| Square Size (Decimal Inch) | 0.2170 |
| Square Size (mm) | 5.50 |
| Flute Style | Fast |
| Series | P21569 |
| UNSPSC Code | 23241600 |
