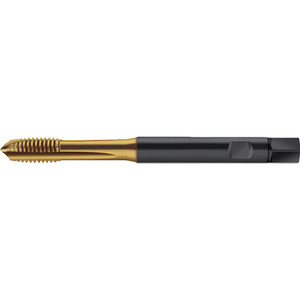

Walter Prototyp Spiral Point Tap: 1/4-28 UNF, 3 Flutes, Plug Chamfer, 2B Class of Fit, High-Speed Steel-E, TiN Coated 9.09 mm Thread Length, 80.01 mm OAL, Right Hand, Series AS2321005 5348679 - 36371516
Brand: Walter Prototyp- SKU:
- 36371516
- ID:
- 776683
$72.86
Walter Prototyp Spiral Point Tap: 1/4-28 UNF, 3 Flutes, Plug Chamfer, 2B Class of Fit, High-Speed Steel-E, TiN Coated 9.09 mm Thread Length, 80.01 mm OAL, Right Hand, Series AS2321005
Manufacturer Part #: 5348679
S/N: 36371516
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 1/4-28 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | HSS-E |
| Class Of Fit | 2B |
| Coating/Finish | TiN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Other Materials |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 28 |
| Overall Length (Decimal Inch) | 3.15 |
| Thread Pitch (Decimal Inch) | 0.0357 |
| Overall Length (mm) | 80.01 |
| Material Grade | M35 |
| Thread Length (Decimal Inch) | 0.3580 |
| Thread Length (mm) | 9.09 |
| Shank Diameter (mm) | 6.48 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.8230 |
| Square Size (mm) | 4.85 |
| Series | AS2321005 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
