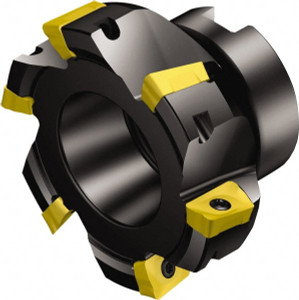

Sandvik Coromant 2" Cut Diam, 3/4" Arbor Hole Diam, 10mm Max Depth, Indexable Square-Shoulder Face Mill Takes 5 Inserts, 90° Lead Angle, 40.005mm High, R390-11 Insert Style, Series CoroMill 390 5740090 - 36429090
Brand: Sandvik Coromant- SKU:
- 36429090
- ID:
- 680832
$1,034.32
Sandvik Coromant 2" Cut Diam, 3/4" Arbor Hole Diam, 10mm Max Depth, Indexable Square-Shoulder Face Mill Takes 5 Inserts, 90° Lead Angle, 40.005mm High, R390-11 Insert Style, Series CoroMill 390
Manufacturer Part #: 5740090
S/N: 36429090
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (mm) | 50.80 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | R390-11.. |
| Cutter Style | RA390 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | CoroMill 390 |
| Maximum Body Diameter (Decimal Inch) | 1.9370 |
| Overall Height (Mm - 5 Decimals) | 40.01 |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (mm) | 8.15 |
| Keyway Width (Decimal Inch) | 0.3209 |
| Hub Diameter (mm) | 19.05 |
| Hub Diameter (Inch) | 3/4 |
| Pitch Type | Close |
| Cutting Edge Length (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | R390-11.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
