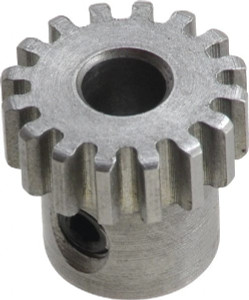

Boston Gear 32 Pitch, 1/2" Pitch Diam, 16 Tooth Spur Gear 0.188" Face Width, 3/16" Bore Diam, 0.39" Hub Diam, 14.5° Pressure Angle, Steel H3216 - 36681906

Brand: Boston Gear

SKU:: 36681906

ID:: 568599

$60.08

Current Stock:

Adding to cart… The item has been added

Boston Gear 32 Pitch, 1/2" Pitch Diam, 16 Tooth Spur Gear 0.188" Face Width, 3/16" Bore Diam, 0.39" Hub Diam, 14.5° Pressure Angle, Steel

Manufacturer Part #: H3216

S/N: 36681906

UNSPSC: 31171700

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Gear Type	Spur
Pitch Diameter (Decimal Inch)	0.5000
Outside Diameter (Decimal Inch - 4 Decimals)	0.5600
Outside Diameter (mm)	14.20
Face Width (Decimal Inch)	0.1880
Hub Projection (Decimal Inch)	0.3100
Hub Diameter (Decimal Inch)	0.3900
Pressure Angle	14.5degree
Material	Steel
Diametral Pitch	32
Bore Diameter (Inch)	3/16
Bore Diameter (Decimal Inch)	0.1875
Number Of Teeth	16
Product Service Code	3020

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
