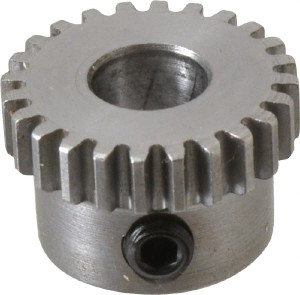

Boston Gear 32 Pitch, 3/4" Pitch Diam, 24 Tooth Spur Gear 0.188" Face Width, 5/16" Bore Diam, 0.64" Hub Diam, 14.5° Pressure Angle, Steel H3224 - 36681930

Brand: Boston Gear

SKU:: 36681930

ID:: 568609

$60.18

Current Stock:

Adding to cart… The item has been added

Boston Gear 32 Pitch, 3/4" Pitch Diam, 24 Tooth Spur Gear 0.188" Face Width, 5/16" Bore Diam, 0.64" Hub Diam, 14.5° Pressure Angle, Steel

Manufacturer Part #: H3224

S/N: 36681930

UNSPSC: 31171700

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Gear Type	Spur
Pitch Diameter (Decimal Inch)	0.7500
Outside Diameter (Decimal Inch - 4 Decimals)	0.8100
Outside Diameter (mm)	20.60
Face Width (Decimal Inch)	0.1880
Hub Projection (Decimal Inch)	0.3100
Hub Diameter (Decimal Inch)	0.6400
Pressure Angle	14.5degree
Material	Steel
Diametral Pitch	32
Bore Diameter (Inch)	5/16
Bore Diameter (Decimal Inch)	0.3125
Number Of Teeth	24
Product Service Code	3020
