Boston Gear 32 Pitch, 1-1/4

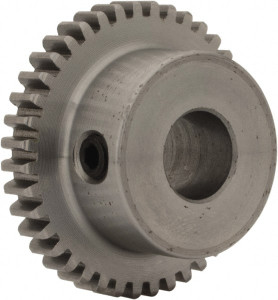

Boston Gear 32 Pitch, 1-1/4" Pitch Diam, 40 Tooth Spur Gear 0.188" Face Width, 3/8" Bore Diam, 0.88" Hub Diam, 14.5° Pressure Angle, Steel H3240 - 36681948

Brand:   Boston Gear
SKU:
36681948
ID:
568592
callling
$63.33
Current Stock:
Adding to cart… The item has been added

Boston Gear

Boston Gear 32 Pitch, 1-1/4" Pitch Diam, 40 Tooth Spur Gear 0.188" Face Width, 3/8" Bore Diam, 0.88" Hub Diam, 14.5° Pressure Angle, Steel

Manufacturer Part #: H3240

S/N: 36681948

UNSPSC: 31171700

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Gear TypeSpur
Pitch Diameter (Decimal Inch)1.2500
Outside Diameter (Decimal Inch - 4 Decimals)1.3100
Outside Diameter (mm)33.30
Face Width (Decimal Inch)0.1880
Hub Projection (Decimal Inch)0.3800
Hub Diameter (Decimal Inch)0.8800
Pressure Angle14.5degree
MaterialSteel
Diametral Pitch32
Bore Diameter (Inch)3/8
Bore Diameter (Decimal Inch)0.3750
Number Of Teeth40
Product Service Code3020
