Boston Gear 10 Pitch, 1.2" Pitch Diam, 12 Tooth Spur Gear 1" Face Width, 5/8" Bore Diam, 0.92" Hub Diam, 14.5° Pressure Angle, Steel NF12B - 36682235

Boston Gear 10 Pitch, 1.2" Pitch Diam, 12 Tooth Spur Gear 1" Face Width, 5/8" Bore Diam, 0.92" Hub Diam, 14.5° Pressure Angle, Steel NF12B - 36682235

Brand:   Boston Gear
SKU:
36682235
ID:
568636
callling
$75.79
Current Stock:
Adding to cart… The item has been added

Boston Gear

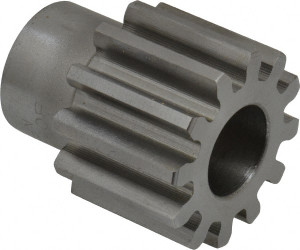

Boston Gear 10 Pitch, 1.2" Pitch Diam, 12 Tooth Spur Gear 1" Face Width, 5/8" Bore Diam, 0.92" Hub Diam, 14.5° Pressure Angle, Steel

Manufacturer Part #: NF12B

S/N: 36682235

UNSPSC: 31171700

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Gear TypeSpur
Pitch Diameter (Decimal Inch)1.2000
Outside Diameter (Decimal Inch - 4 Decimals)1.4000
Outside Diameter (mm)35.60
Face Width (Decimal Inch)1.0000
Face Width (Inch)1
Hub Projection (Decimal Inch)0.6200
Hub Diameter (Decimal Inch)0.9200
Pressure Angle14.5degree
MaterialSteel
Diametral Pitch10
Bore Diameter (Inch)5/8
Bore Diameter (Decimal Inch)0.6250
Number Of Teeth12
Product Service Code3020
