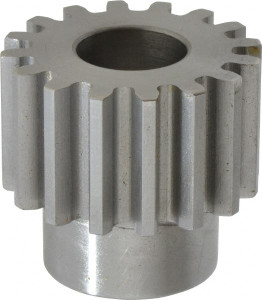

Boston Gear 10 Pitch, 1.6" Pitch Diam, 16 Tooth Spur Gear 1" Face Width, 3/4" Bore Diam, 1.22" Hub Diam, 14.5° Pressure Angle, Steel NF16B - 36682250

Brand: Boston Gear

SKU:: 36682250

ID:: 568626

$90.98

Current Stock:

Adding to cart… The item has been added

Boston Gear 10 Pitch, 1.6" Pitch Diam, 16 Tooth Spur Gear 1" Face Width, 3/4" Bore Diam, 1.22" Hub Diam, 14.5° Pressure Angle, Steel

Manufacturer Part #: NF16B

S/N: 36682250

UNSPSC: 31171700

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Gear Type	Spur
Pitch Diameter (Decimal Inch)	1.6000
Outside Diameter (Decimal Inch - 4 Decimals)	1.8000
Outside Diameter (mm)	45.70
Face Width (Decimal Inch)	1.0000
Face Width (Inch)	1
Hub Projection (Decimal Inch)	0.6200
Hub Diameter (Decimal Inch)	1.2200
Pressure Angle	14.5degree
Material	Steel
Diametral Pitch	10
Bore Diameter (Inch)	3/4
Bore Diameter (Decimal Inch)	0.7500
Number Of Teeth	16
Product Service Code	3020
