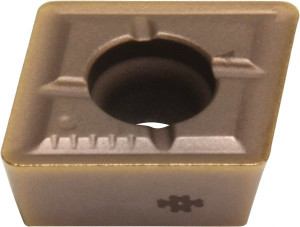

Sumitomo WDXT042004G ACP300 Carbide Indexable Drill Insert TiAlN/AlCrN Finish, 0.0788" Thick, 0.0157" Corner Radius, RH Cut, Parallelogram 1AHB063 - 36789279

Sumitomo WDXT042004G ACP300 Carbide Indexable Drill Insert TiAlN/AlCrN Finish, 0.0788" Thick, 0.0157" Corner Radius, RH Cut, Parallelogram 1AHB063 - 36789279

Brand:   Sumitomo
SKU:
36789279
ID:
656291
callling
$15.37
Current Stock:
Adding to cart… The item has been added

Sumitomo

Sumitomo WDXT042004G ACP300 Carbide Indexable Drill Insert TiAlN/AlCrN Finish, 0.0788" Thick, 0.0157" Corner Radius, RH Cut, Parallelogram

Manufacturer Part #: 1AHB063

S/N: 36789279

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleWDXT
Insert MaterialSolid Carbide
Manufacturer GradeACP300
Inscribed Circle (Decimal Inch)0.1570
Cutting DirectionRight Hand
Corner Radius (Decimal Inch)0.0157
ChipbreakerG
Coating ProcessPVD
ShapeParallelogram
Primary Workpiece MaterialUniversal
Primary Workpiece Material CodeK, M, N, P, S
Insert Size042004
Width (Decimal Inch - 4 Decimals)0.1654
Thickness (Decimal Inch - 4 Decimals)0.0788
Coating/FinishCoated
Insert Size Code04
