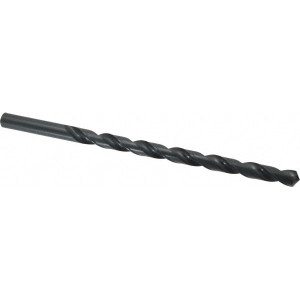

Chicago-Latrobe 33/64" 118° 2-Flute High Speed Steel Extra Length Drill Bit Oxide Finish, 7-1/2" Flute Length, 10" OAL, Series 120X 50580 - 36855260
Brand: Chicago-Latrobe- SKU:
- 36855260
- ID:
- 708791
$64.67
Chicago-Latrobe 33/64" 118° 2-Flute High Speed Steel Extra Length Drill Bit Oxide Finish, 7-1/2" Flute Length, 10" OAL, Series 120X
Manufacturer Part #: 50580
S/N: 36855260
UNSPSC: 23241637
UPC: 662355505809
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Overall Length (Inch) | 10 |
| Tool Material | High Speed Steel |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Drill Point Angle | 118 |
| Flute Length (Inch) | 7-1/2 |
| Point Type | Notched |
| Series | 120X |
| Cutting Direction | Right Hand |
| Tool Application | Long Reach Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Cast Iron, Steel |
| Standards | California PROP 65 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size (Decimal Inch) | 0.5156 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.5156 |
| Shank Diameter (mm) | 13.10 |
| Shank Length (Decimal Inch) | 5.0000 |
| Shank Length (mm) | 63.50 |
