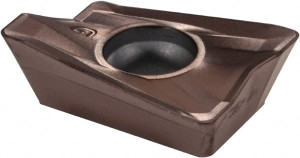

Sumitomo AXMT170508PEERG ACP200 Carbide Milling Insert TiAlN/AlCrN Finish, 0.689" Long x 0.219" Thick x 0.402" Wide 14HA313 - 36886810

Sumitomo AXMT170508PEERG ACP200 Carbide Milling Insert TiAlN/AlCrN Finish, 0.689" Long x 0.219" Thick x 0.402" Wide 14HA313 - 36886810

Brand:   Sumitomo
SKU:
36886810
ID:
663150
callling
$19.45
Current Stock:
Adding to cart… The item has been added

Sumitomo

Sumitomo AXMT170508PEERG ACP200 Carbide Milling Insert TiAlN/AlCrN Finish, 0.689" Long x 0.219" Thick x 0.402" Wide

Manufacturer Part #: 14HA313

S/N: 36886810

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleAXMT
Insert Size170508
Insert MaterialSolid Carbide
Insert ShapeParallelogram
Manufacturer GradeACP200
Corner Radius (Decimal Inch)0.0310
Thickness (Decimal Inch - 4 Decimals)0.2190
Coating/FinishCoated
Relief Angle11
Maximum Depth of Cut (Decimal Inch)0.5510
Maximum Depth of Cut (mm)14.00
Insert Size Code1235
Material GradeC5A, C6, C7
Thickness Range (Decimal Inch)0.2000 to 0.2200
Length Range (Decimal Inch)0.6500 to 0.7000
Insert HandRight Hand
Coating ProcessPVD
Cutting Edge Effective Length (Decimal Inch)0.6890
Primary Workpiece MaterialSteel
Primary Workpiece Material CodeP
Cutter Series CompatibilityWEX3000
Chip BreakerG
Included Angle Degree85
Width (Decimal Inch - 4 Decimals)0.4020
Length (Decimal Inch - 4 Decimals)0.6890
