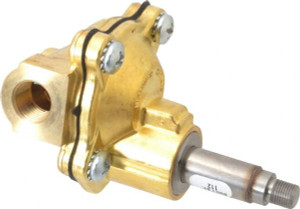

Parker Hannifin 3/8" Port Brass Solenoid Valve Closed 73218BN3TN00 - 36912095
Brand: Parker Hannifin Corporation- SKU:
- 36912095
- ID:
- 548207
$309.79
Parker Hannifin 3/8" Port Brass Solenoid Valve Closed
Manufacturer Part #: 73218BN3TN00
S/N: 36912095
UNSPSC: 40141605
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Port Size | 3/8 in |
| Valve Unactuated State | Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 12Vdc, 120Vdc, 120/60 to 110/50Vac, 24Vdc, 24/60Vac, 240/60 to 220/50Vac |
| Maximum Working Pressure (Psi - 3 Decimals) | 150 |
| Cv Factor Nc | 3.0000 |
| Overall Height (Decimal Inch) | 4.3800 |
| Overall Length (Decimal Inch) | 2.7600 |
| Orifice Size | 5/8 |
| Standards | CSA Certified, NEMA 4X, UL Listed |
| Cv Rating | 3.000 |
| Coil Included | Yes |
| Special Item Information | Requires Integrated Coil for Complete Valve |
| Minimum Operating Pressure Differential | 5 |
| Maximum Temperature (F) ( - 0 Decimals) | 185 |
| Maximum Temperature (C) | 185 |
