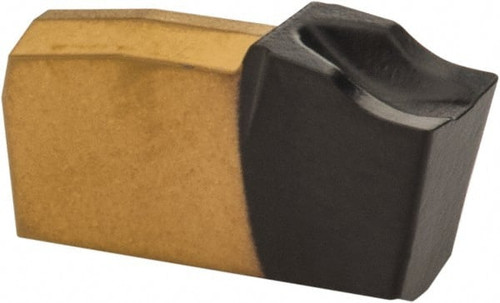

Kennametal ODG3125ISGD KCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.4217" Long x 0.1831" Thick x 0.1201" Wide 2227129 - 37016300
Brand: Kennametal- SKU:
- 37016300
- ID:
- 661100
$22.80
Kennametal ODG3125ISGD KCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.4217" Long x 0.1831" Thick x 0.1201" Wide
Manufacturer Part #: 2227129
S/N: 37016300
UNSPSC: 23291601
UPC: 684122387241
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | ODG |
| Insert Size | 3 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1831 |
| Coating/Finish | TiN, TiCN, Al2O3 |
| Maximum Depth of Cut (Decimal Inch) | 0.4217 |
| Maximum Depth of Cut (mm) | 10.71 |
| Insert Size Code | 3125 |
| Material Grade | C1, C5, C6 |
| Inscribed Circle (Decimal Inch) | 0.1201 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Series | ODG |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Ansi Code | ODG3125ISGD |
| Iso Code | 3.90030SNGD |
| Standards | ANSI, ISO |
| Cutting Edge Style | Chamfered, Honed |
| Manufacturers Catalog Number | 3.90030SNGD |
| Cutter Series Compatibility | A2 |
| Chip Breaker | GD |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Insert Holding Method | Clamp |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.1201 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4217 |
