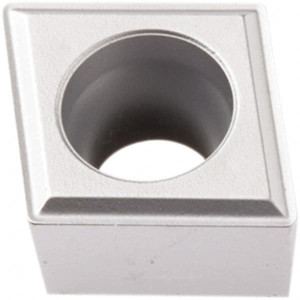

Seco Tools CCMT21.50.5-FF1 TP2501 Carbide Turning Insert Al2O3 Finish, Neutral, 1/4" Inscribed Circle, 1/128" Corner Radius, 80° Diamond 02960834 - 37203221
Brand: Seco Tools- SKU:
- 37203221
- ID:
- 676183
$19.75
Seco Tools CCMT21.50.5-FF1 TP2501 Carbide Turning Insert Al2O3 Finish, Neutral, 1/4" Inscribed Circle, 1/128" Corner Radius, 80° Diamond
Manufacturer Part #: 02960834
S/N: 37203221
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80degree |
| Manufacturer Grade | TP2501 |
| Coating/Finish | TiCN, Al2O3, Cr |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | CCMT-FF1 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.2461 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4in |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2559 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel, Cast Iron |
| Secondary Workpiece Material Code | M, K |
| Iso Code | CCMT060202-FF1 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 02960834 |
| Material Grade | P10, P20, P30, P35 |
| Single or Multi Tipped | Multi Tipped |
| Proprietary Coating Designation | Duratomic |
| Lead Angle | 80degree |
| Coating Classification | Duratomic |
| Chip Breaker | FF1 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCMT21.50.5-FF1 |
| Width (Decimal Inch - 4 Decimals) | 0.2500in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50.5 |
