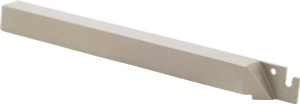

Iscar 0.63" Max Depth, 0.071" to 0.098" Width, External Right Hand Indexable Grooving/Cutoff Toolholder 5.91" OAL, 1/2" x 1/2" Shank, Uses TAG Inserts, TGT Toolholder, Series Tang-GripIQ 2301901 - 37345683
Brand: Iscar- SKU:
- 37345683
- ID:
- 685912
$227.68
Iscar 0.63" Max Depth, 0.071" to 0.098" Width, External Right Hand Indexable Grooving/Cutoff Toolholder 5.91" OAL, 1/2" x 1/2" Shank, Uses TAG Inserts, TGT Toolholder, Series Tang-GripIQ
Manufacturer Part #: 2301901
S/N: 37345683
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Minimum Groove Width (Decimal Inch) | 0.0710 |
| Toolholder Style | TGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TAG N-A, TAG N-C/W/M, TAG N-HF, TAG N-J/JS/JT, TAG N-LF, TAG N-MF, TAG N-UT, TAG R/L-C, TAG R/L-J/JS |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Series | Tang-GripIQ |
| Overall Length (Decimal Inch) | 5.9100 |
| Cutting Tool Application | Cut-Off, Grooving |
| Full Radius Insert | No |
| Standards | ISO 13399 |
| Complete Insert Compatibility | TAG L2C-6D, TAG L2J-15D, TAG L2J-6D, TAG L2JS-6D, TAG N2.4C, TAG N2C, TAG N2J, TAG N2JS, TAG N2JT, TAG N2UT, TAG R2.4C-8D, TAG R2C-6D, TAG R2J-6D, TAG R2JS-6D |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
