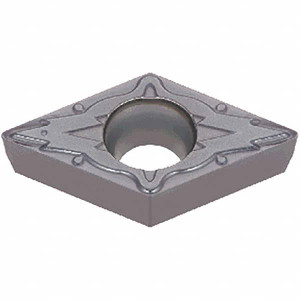

Tungaloy Turning Insert DCMT32.51 PSF AH8005, Coated, 0.457" Long, 3/8" Inscribed Circle, 0.0157" Corner Radius, 55° Diamond, Series DCMT 6747767 - 37465143

Tungaloy Turning Insert DCMT32.51 PSF AH8005, Coated, 0.457" Long, 3/8" Inscribed Circle, 0.0157" Corner Radius, 55° Diamond, Series DCMT 6747767 - 37465143

Brand:   Tungaloy
SKU:
37465143
ID:
677963
callling
$21.47
Current Stock:
Adding to cart… The item has been added

Tungaloy

Tungaloy Turning Insert DCMT32.51 PSF AH8005, Coated, 0.457" Long, 3/8" Inscribed Circle, 0.0157" Corner Radius, 55° Diamond, Series DCMT

Manufacturer Part #: 6747767

S/N: 37465143

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle7
Insert StyleDCMT
Corner Radius (Inch)1/64
Corner Radius (Decimal Inch)0.0157
Included Angle55degree
Manufacturer GradeAH8005
Coating/FinishTiAlN
Wiper EdgeNo
Insert HandNeutral
Insert Thickness (Inch)5/32
Insert Thickness (Decimal Inch)0.1563
SeriesDCMT-PSF
Inscribed Circle (Inch)3/8
Inscribed Circle (Decimal Inch)0.3750
Insert MaterialCarbide
Insert ShapeDiamond 55
Number Of Cutting Edges2
Insert Shape CodeD
Hole Diameter (Decimal Inch)0.1730
Maximum Depth of Cut (Decimal Inch)0.0197
Insert Holding MethodScrew
Width (Inch)3/8in
Clearance CodeC
Tolerance CodeM
Coating ProcessPVD
Length Range (Decimal Inch)0.7000 - 10.0000
RakePositive
Insert Length (Decimal Inch)0.9140
Primary Workpiece MaterialStainless Steel, Superalloys & Titanium, Hard Material
Primary Workpiece Material CodeM, S, H
Iso CodeDCMT32.51 PSF
StandardsANSI, ISO
Manufacturers Catalog Number6747767
Material GradeM01, M10, S01, S10
Coating ClassificationPVD
Chip BreakerPSF
Rake Angle20
Cutting Edge StyleChamfered & Honed
Industry Standard NumberDCMT 32.51 PSF
Width (Decimal Inch - 4 Decimals)0.3750in
Multi-Use ToolYes
Full RadiusNo
Multi-Use ApplicationTurning, Facing, Boring, Back Turning, Back Boring
UNSPSC Code23242105
Insert Size Code32.51
