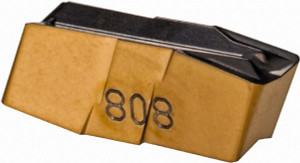

Iscar GIF 4.78-055 IC808 Carbide Grooving Insert TiN/TiAlN Finish, Neutral, 4.78mm Cutting Width, 13mm Max Depth, Series Cut Grip 6404345 - 37764719
Brand: Iscar- SKU:
- 37764719
- ID:
- 648668
$56.70
Iscar GIF 4.78-055 IC808 Carbide Grooving Insert TiN/TiAlN Finish, Neutral, 4.78mm Cutting Width, 13mm Max Depth, Series Cut Grip
Manufacturer Part #: 6404345
S/N: 37764719
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | GIF |
| Insert Size Code | 478055 |
| Cutting Width (Decimal Inch) | 0.1880 |
| Cutting Width (mm) | 4.78 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Maximum Depth of Cut (mm) | 13.00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0220 |
| Corner Radius (mm) | 0.56 |
| Rake | Positive |
| Insert Holding Method | Self Grip |
| Insert Size | 478055 |
| Material Grade | Submicron |
| Cutting Height (mm) | 5.00 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Multi-use Tool | No |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.6020 |
| Overall Length (mm) | 15.29 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | GIF 4.78-0.55 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | GIF 4.78-0.55 |
| Chip Breaker | F |
| Coating/Finish | AlTiN, TiAlN, TiN |
| Single Or Double End | Double |
