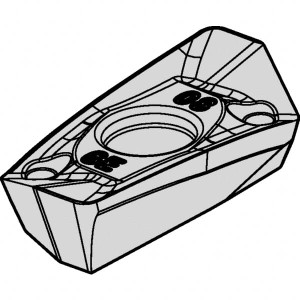

Kennametal EP1408SGE KCSM40 Carbide Milling Insert AlTiN/TiN Finish, 11/16" Long x 4.5mm Thick x 8mm Wide 6172192 - 37857588
Brand: Kennametal- SKU:
- 37857588
- ID:
- 661132
$30.02
Kennametal EP1408SGE KCSM40 Carbide Milling Insert AlTiN/TiN Finish, 11/16" Long x 4.5mm Thick x 8mm Wide
Manufacturer Part #: 6172192
S/N: 37857588
UNSPSC: 23291601
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | EDPT |
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KCSM40 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1750 |
| Thickness (mm) | 4.50 |
| Coating/Finish | TiAlN, TiN |
| Relief Angle | 15 |
| Insert Size Code | 1408 |
| Length (Inch) | 11/16 |
| Inscribed Circle (Decimal Inch) | 0.3216 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Series | EDPT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.13 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | EP1408SGE |
| Iso Code | EDPT140408PDSRGE |
| Standards | ANSI, ISO |
| Rake Angle | 14 |
| Cutting Edge Style | Chamfered, Honed |
| Manufacturers Catalog Number | EDPT140408PDSRGE |
| Cutter Series Compatibility | Mill 1-14 |
| Chip Breaker | GE |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.3216 |
| Width (mm - 2 Decimals) | 8.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6878 |
