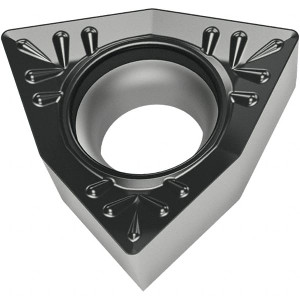

Walter Tools WCMT06T304-RM4 WSM20S Carbide Turning Insert Neutral, 6.52mm Long, 3/8" Inscribed Circle, 0.4mm Corner Radius, 5/32" Thick, 80° Trigon 6917332 - 38188629
Brand: Walter Tools- SKU:
- 38188629
- ID:
- 678573
$22.56
Walter Tools WCMT06T304-RM4 WSM20S Carbide Turning Insert Neutral, 6.52mm Long, 3/8" Inscribed Circle, 0.4mm Corner Radius, 5/32" Thick, 80° Trigon
Manufacturer Part #: 6917332
S/N: 38188629
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | WCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | WSM20S |
| Coating/Finish | TiCN, Al2O3, Al |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | WCMT-RM4 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (mm) | 6.52 |
| Insert Length (Decimal Inch) | 0.5140 |
| Primary Workpiece Material | Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | M, S |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | WCMT06T304-RM4 WSM20S |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6917332 |
| Material Grade | M20, S20, P20 |
| Proprietary Coating Designation | WSM20S |
| Lead Angle | 80 |
| Coating Classification | PVD |
| Chip Breaker | RM4 |
| Rake Angle | 12 |
| Cutting Edge Style | Chamfered & Honed |
| Industry Standard Number | WCMT3(2.5)1-RM4 WSM20S |
| Width (Decimal Inch - 4 Decimals) | 0.514 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
