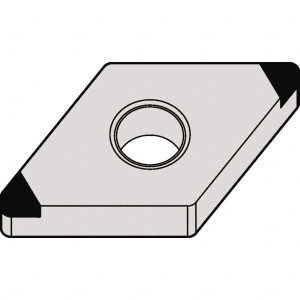

Kennametal DNGA431S0415MT KBH10 CBN Turning Insert 0.61" Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 55° Diamond, Series Kenloc 6295930 - 38327235

Kennametal DNGA431S0415MT KBH10 CBN Turning Insert 0.61" Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 55° Diamond, Series Kenloc 6295930 - 38327235

Brand:   Kennametal
SKU:
38327235
ID:
673647
callling
$157.62
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal DNGA431S0415MT KBH10 CBN Turning Insert 0.61" Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 55° Diamond, Series Kenloc

Manufacturer Part #: 6295930

S/N: 38327235

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle0
Insert StyleDNGA
Corner Radius (Inch)1/64
Corner Radius (Decimal Inch)0.0156
Included Angle55degree
Manufacturer GradeKBH10
Coating/FinishBright/Uncoated
Wiper EdgeNo
Insert HandNeutral
Insert Thickness (Inch)3/16
Insert Thickness (Decimal Inch)0.1875
SeriesKENLOC
Inscribed Circle (Inch)1/2
Inscribed Circle (Decimal Inch)0.5000
Insert MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Insert ShapeDiamond 55
Number Of Cutting Edges2
Insert Shape CodeD
Hole Diameter (Decimal Inch)0.2030
Maximum Depth of Cut (Decimal Inch)0.4063
Insert Holding MethodClamp, Pin
Width (Inch)1/2in
Clearance CodeN
Tolerance CodeG
Coating ProcessUncoated
Length Range (Decimal Inch)0.7000 - 10.0000
RakeNegative
Insert Length (Decimal Inch)1.2200
Primary Workpiece MaterialHard Material
Primary Workpiece Material CodeH
Iso CodeDNGA150404S01015MT
StandardsANSI, ISO
Manufacturers Catalog Number6295930
Material GradeH05, H15
Single or Multi TippedMulti Tipped
Proprietary Coating DesignationUncoated
Coating ClassificationUncoated
Chip BreakerFlat Top
Rake Angle0
Cutting Edge StyleChamfered & Honed
Industry Standard NumberDNGA431S0415MT
Width (Decimal Inch - 4 Decimals)0.5000in
Multi-Use ToolYes
Full RadiusNo
Multi-Use ApplicationTurning, Facing, Boring, Back Turning, Back Boring
UNSPSC Code23242105
Insert Size Code431
