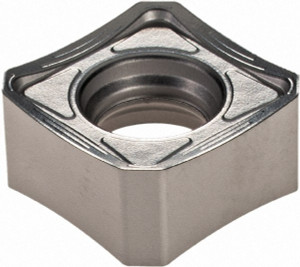

Walter Tools SNGX1205ANN-F57 WKP35S Carbide Milling Insert TiCN/Al2O3/TiCN Finish, 1/2" Long x 0.252" Thick 5887074 - 40177487
Brand: Walter Tools- SKU:
- 40177487
- ID:
- 663473
$44.85
Walter Tools SNGX1205ANN-F57 WKP35S Carbide Milling Insert TiCN/Al2O3/TiCN Finish, 1/2" Long x 0.252" Thick
Manufacturer Part #: 5887074
S/N: 40177487
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SNGX |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | WKP35S |
| Corner Radius (Decimal Inch) | 0.0000 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2180 |
| Coating/Finish | TiCN, Al2O3, TiCN |
| Relief Angle | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Insert Size Code | 1205 |
| Material Grade | P35, K35 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | SNGX |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Ansi Code | SNGX1205ANN-F57 WKP35S |
| Iso Code | SNGX1205ANN-F57 WKP35S |
| Standards | ANSI, ISO |
| Rake Angle | 16 |
| Cutting Edge Style | Chamfered, Honed |
| Manufacturers Catalog Number | SNGX1205ANN-F57 |
| Cutter Series Compatibility | F2010, M5009 |
| Chip Breaker | F57 |
| Material Application | Steel, Cast Iron |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 12.70 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
