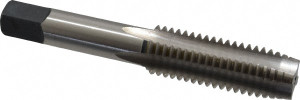

Cleveland Twist Drill 5/8-11 Plug RH 2B H5 Bright High Speed Steel 4-Flute Straight Flute Hand Tap 3.813" OAL, 1.09" Thread Length, UNC, Series 1002 C54783 - 40206229
Brand: Cleveland Twist Drill- SKU:
- 40206229
- ID:
- 777168
$76.79
Cleveland Twist Drill 5/8-11 Plug RH 2B H5 Bright High Speed Steel 4-Flute Straight Flute Hand Tap 3.813" OAL, 1.09" Thread Length, UNC, Series 1002
Manufacturer Part #: C54783
S/N: 40206229
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tap Type | Standard |
| Thread Size (Inch) | 5/8-11 |
| Overall Length (Decimal Inch) | 3.8130 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 2B |
| Thread Limit | H5 |
| Number Of Flutes | 4 |
| Oversize | No |
| Threads per Inch | 11 |
| Thread Length (Decimal Inch) | 1.0900 |
| Application | Blind Hole Threading, Through-Hole Threading |
| Shank Diameter (mm) | 12.19 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Length (mm) | 14.29 |
| Square Length (Decimal Inch) | 0.5625 |
| Square Length (Inch) | 9/16 |
| Square Size (mm) | 9.14 |
| Square Size (Decimal Inch) | 0.3600 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Free-Machining Stainless Steel |
| Series | 1002 |
