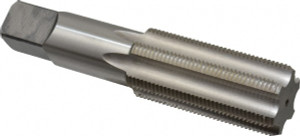

Cleveland Twist Drill 1-3/8 - 12 Bottoming RH 3B H4 Bright High Speed Steel 6-Flute Straight Flute Hand Tap 146.05mm OAL, 3" Thread Length, UNF, Series 1003 C55032 - 40207680
Brand: Cleveland Twist Drill- SKU:
- 40207680
- ID:
- 777096
$465.14
Cleveland Twist Drill 1-3/8 - 12 Bottoming RH 3B H4 Bright High Speed Steel 6-Flute Straight Flute Hand Tap 146.05mm OAL, 3" Thread Length, UNF, Series 1003
Manufacturer Part #: C55032
S/N: 40207680
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tap Type | Standard |
| Thread Size (Inch) | 1-3/8-12 |
| Overall Length (Decimal Inch) | 5.7500 |
| Overall Length (mm) | 146.05 |
| Thread Standard | UNF |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 3B |
| Thread Limit | H4 |
| Number Of Flutes | 6 |
| Oversize | No |
| Thread Length (Decimal Inch) | 3.0000 |
| Thread Length (Inch) | 3 |
| Overall Length (Inch) | 5-3/4 |
| Application | Blind Hole Threading, Through-Hole Threading |
| Shank Diameter (mm) | 28.14 |
| Shank Diameter (Decimal Inch) | 1.1080 |
| Square Length (mm) | 26.99 |
| Square Length (Decimal Inch) | 1.0625 |
| Square Length (Inch) | 1-1/16 |
| Square Size (mm) | 21.11 |
| Square Size (Decimal Inch) | 0.8310 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Free-Machining Stainless Steel |
| Series | 1003 |
