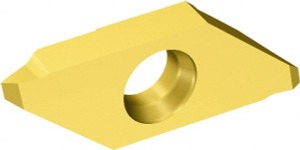

Sandvik Coromant MATL360-A 1025 Carbide Laydown Threading Insert TiAlN/TiN Finish, LH External 60° V Thread, 24-80 TPI, 0.118" Inscribed Circle, 1/8" Thick 5735474 - 40378499
Brand: Sandvik Coromant- SKU:
- 40378499
- ID:
- 665429
$79.85
Sandvik Coromant MATL360-A 1025 Carbide Laydown Threading Insert TiAlN/TiN Finish, LH External 60° V Thread, 24-80 TPI, 0.118" Inscribed Circle, 1/8" Thick
Manufacturer Part #: 5735474
S/N: 40378499
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | MAT |
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1025 |
| Threads Per Inch | 24-80 |
| Thread Type | External |
| Pitch (mm) | 0.20-1.00 |
| Thread Standard | 60 Deg V |
| Insert Hand | Left Hand |
| Thickness (Inch) | 1/8 |
| Thickness (mm) | 3.17 |
| Included Angle | 60 |
| Series | CoroCut XS |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.80 |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Number of Teeth Per Side | 1 |
| Manufacturers Catalog Number | MATL 3 60-A 1025 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Coating/Finish | TiAlN/TiN |
| UNSPSC Code | 23291804 |
