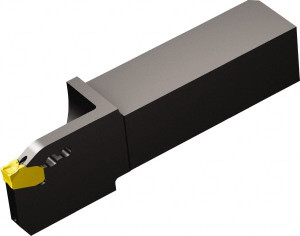

Sandvik Coromant 25.4mm Max Depth, 3mm to 4mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 111mm OAL, 1" x 1" Shank, Uses QD-NG-0300-0002-CM Inserts, QS-QD-RF..C..D Toolholder, Through Coolant, Series CoroCut QD 6427678 - 40536070
Brand: Sandvik Coromant- SKU:
- 40536070
- ID:
- 686162
$741.76
Sandvik Coromant 25.4mm Max Depth, 3mm to 4mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 111mm OAL, 1" x 1" Shank, Uses QD-NG-0300-0002-CM Inserts, QS-QD-RF..C..D Toolholder, Through Coolant, Series CoroCut QD
Manufacturer Part #: 6427678
S/N: 40536070
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 25.40 |
| Maximum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | QS-QD-RF..C..D |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | QD-NG-0300 |
| Insert Compatibility | QD-NG-0300-0002-CM |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 58.60 |
| Shank Length (Decimal Inch) | 2.3071 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | CoroCut QD |
| Overall Length (mm) | 111.00 |
| Overall Length (Decimal Inch) | 4.3701 |
| Cutting Tool Application | Cut-Off, Grooving, Parting |
| Maximum Overhang (Inch) | 2.0629 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.3701 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (mm) | 25.40 |
| Head Length (Decimal Inch) | 1.0000 |
| Head Length (mm) | 25.40 |
| Manufacturers Catalog Number | QS-QD-RFG1000C16D |
| Coolant Through | Yes |
| UNSPSC Code | 27112809 |
