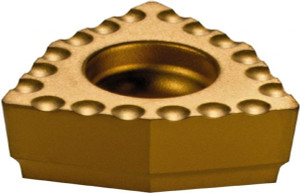

Komet WOEX06T304-03 BK6425 Carbide Indexable Drill Insert TiCN/Al2O3/TiN Finish, 10mm Inscribed Circle, 3.8mm Thick, 0.4mm Corner Radius, Neutral Cut, 84° Trigon W2934030046425 - 40551566
Brand: Komet- SKU:
- 40551566
- ID:
- 655981
$31.77
Komet WOEX06T304-03 BK6425 Carbide Indexable Drill Insert TiCN/Al2O3/TiN Finish, 10mm Inscribed Circle, 3.8mm Thick, 0.4mm Corner Radius, Neutral Cut, 84° Trigon
Manufacturer Part #: W2934030046425
S/N: 40551566
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | WOEX | |
| Insert Material | Solid Carbide | |
| Manufacturer Grade | BK6425 | |
| Inscribed Circle (Decimal Inch) | 0.3937 | |
| Inscribed Circle (mm) | 10.00 | |
| Cutting Direction | Neutral | |
| Corner Radius (Decimal Inch) | 0.0157 | |
| Corner Radius (mm) | 0.40 | |
| Chipbreaker | 03 | |
| Coating Process | CVD | |
| Shape | Trigon | |
| Relief Angle | 8 | |
| Primary Workpiece Material | Stainless Steel, Steel | |
| Primary Workpiece Material Code | M, P | |
| Standards | ISO 14001, ISO 90001 | 2008 |
| Insert Size | 06T304 | |
| Length (Mm) | 6.60 | |
| Length (Decimal Inch - 4 Decimals) | 0.2598 | |
| Included Angle Degree | 84 | |
| Thickness (Decimal Inch - 4 Decimals) | 0.1496 | |
| Coating/Finish | Coated | |
| Insert Size Code | W29 |
